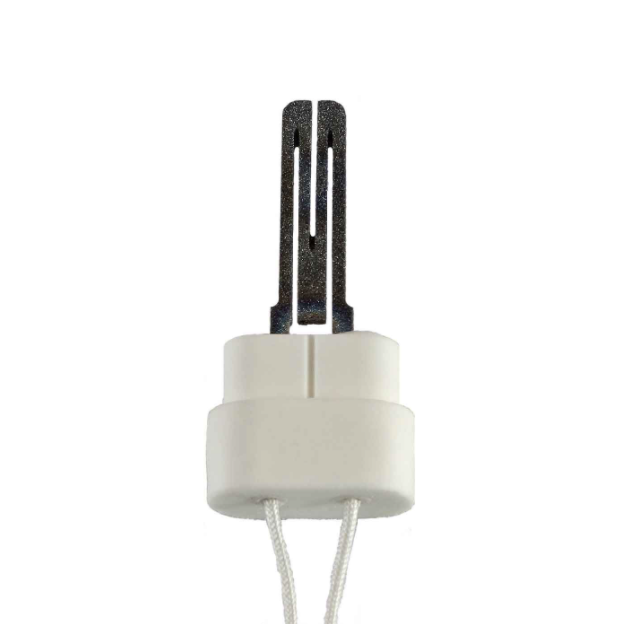

HVAC Hot Surface Igniter

Part number
760-401


Voltage
120 V

Voltage Range
102 to 132 V


Amps
3.0-3.8

RTR
40-200 Ohms


Time to Temp
≤ 20 seconds

Max Temp at 132V
<2900F


Igniter Material
Recrystallized silicon carbide

Insulator Material
0.75 x 1.50 inch oval ceramic holder shown made from steatite. Cordierite and alumina holders also available in a variety of configurations


Lead Wires
200°C temperature rating typical. Options for 250°C, 450°C, and 550°C ratings available in a variety of lengths and terminations

Lead Wire Voltage
300 Volt


Approval
CSA

Control Compatibility
All major manufacturers' systems



Contact SCP to review your specific application and requirements.
